High Power Ultrasonic Piezo Ceramic Disk Material For Ultrasonic Cleaner

Brand Name : Altrasonic

Model Number : HS-PC

Certification : CE

Place of Origin : China

MOQ : 20 units

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 350000 units per month

Delivery Time : 7 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Frenquency : 15Khz

Shipping : TNT DHL UPS FEDEX

Color : Yellow

Warranty : 1 year

Contact Now

φ38*φ13*6.35 High Power Ultrasonic Piezo Ceramic Disk Material Ultrasonic Cleaner

Description:

We supply all specifications of Piezoelectric Ceramic Ring, Piezo Ceramic ring, Piezoelectric Sensor and Ultrasonic Transducer for choice and offer customized service.

Sepcification:

Product name
ultrasonic piezoelectric ceramic
Frequency
15,18,20KHZ
Application
Ultrasonic welding transducer
Color
Yellow and black
Size
60*30*10mm, 50*17*6.5mm, customizable
Material
PZT4, PZT8.etc
Shape
Custom-shaped

Sizes(MM) OD*ID*Thickness Capacitance (pF) Frequency
(kHz)		 Dielectric dissipation factor tgδ(%) Coupling factor Kp (%) Qm
P31 Ceramic Rings φ15*6X2 1080 92 0.4 60 80
P43 Ceramic Rings φ4*φ2*2.5 45 347 0.3 60 1000
φ10*φ5*2 350 145 0.3 60 1000
φ20*φ10*5 1000 50.9 0.3 60 1000
φ25*φ10*5 1000 62.5 0.3 60 1000
φ25*φ9.5*5 1000 60 0.37 60 1000
φ25*φ10*3 1600 61 0.3 60 1000
φ25*φ9.5*3 1650 61.8 0.3 60 1000
φ25*φ10*3 1600 60 0.3 60 1000
φ30*φ12*5 1400 51 0.31 60 1000
φ30*φ12*4.5 1350 53.5 0.32 60 1000
φ30*φ8*5 1550 56.5 0.35 60 1000
φ32*φ9.5*6
φ35*φ15*5 1905 43.6 0.3 60 1000
φ35*φ15*5.5 1760 42 0.36 60 1000
φ36*φ10*4.5 2537 47.5 0.34 60 1000
φ38*φ15*5 2370 40.7 0.3 60 1000
φ38*φ15*6 2000 41 0.35 60 1000
φ38*φ13*6.35 1900 43 0.32 60 1000
φ38*φ15*6.35 1870 40.8 0.3 60 1000
φ45*φ15*5 3500 37.5 0.42 60 1000
φ45*φ15*6.35
φ50*φ17*5 4400 32 0.32 60 1000
φ50*φ17*6.5 3300 32.8 0.3 60 1000
φ50*φ20*3
φ50*φ20*6 3400 32 0.3 60 1800
φ50*φ20*6.5 3200 32 0.3 60 1800
φ50*φ20*7 2900 31 0.3 60 1000
φ60*φ30*10 2500 23.8 0.3 60 1000
φ65*φ30*10 3000 22.7 0.3 60 1000


Application:

As an important force, heat, electricity and light sensitive functional materials, they have been widely used in sensors, ultrasonic transducers, ultrasonic welding equipment, ultrasonic cutting equipment, Ultrasonic cleaning equipment, etc.

Pictures:

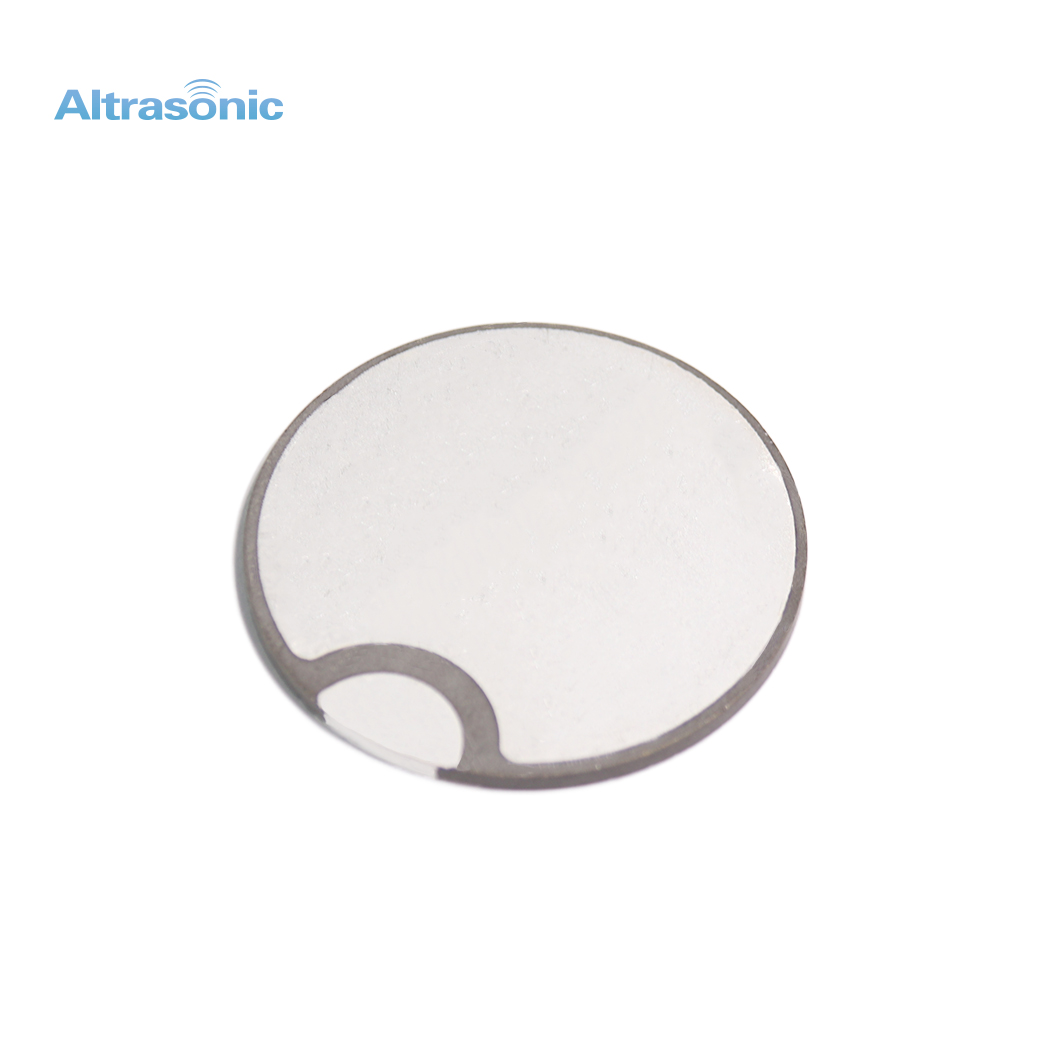

High Power Ultrasonic Piezo Ceramic Disk Material For Ultrasonic Cleaner

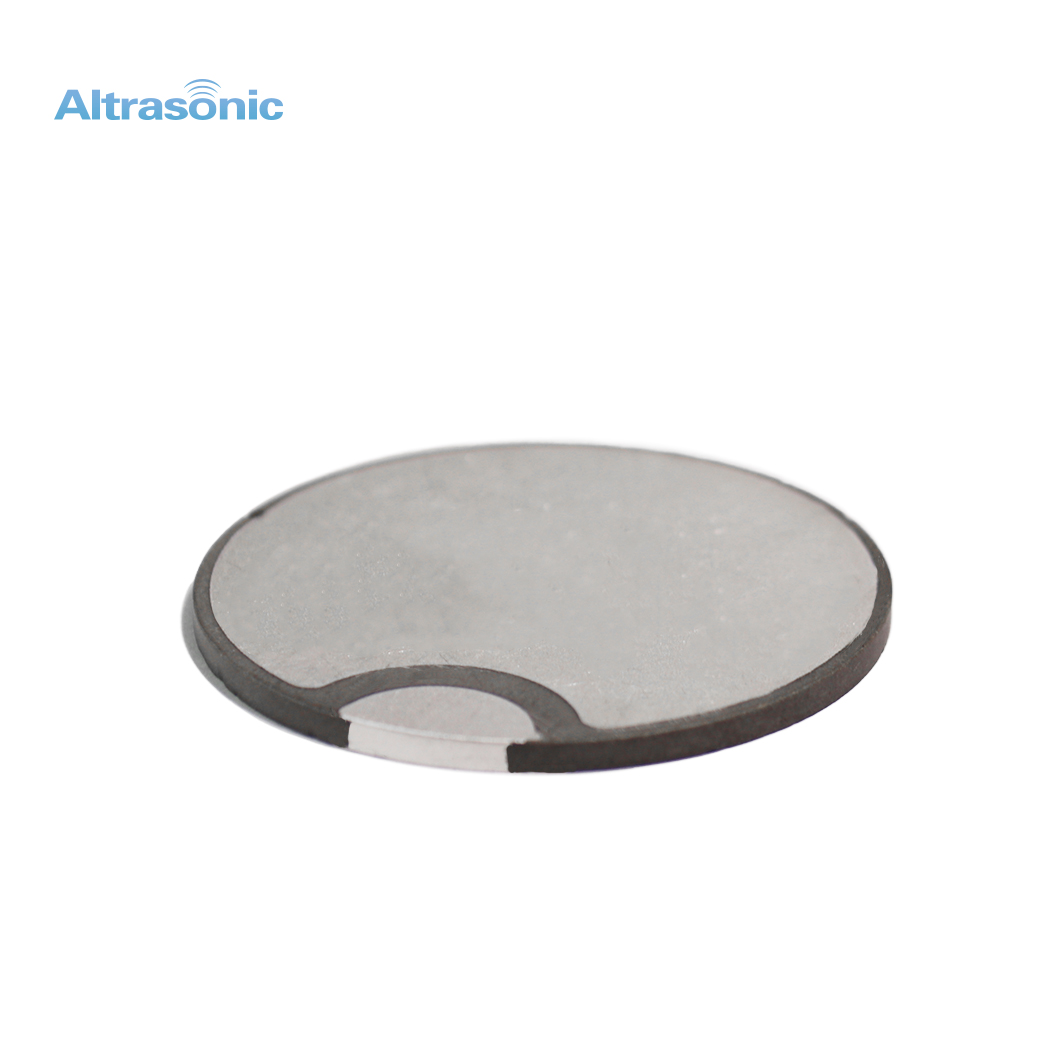

High Power Ultrasonic Piezo Ceramic Disk Material For Ultrasonic Cleaner

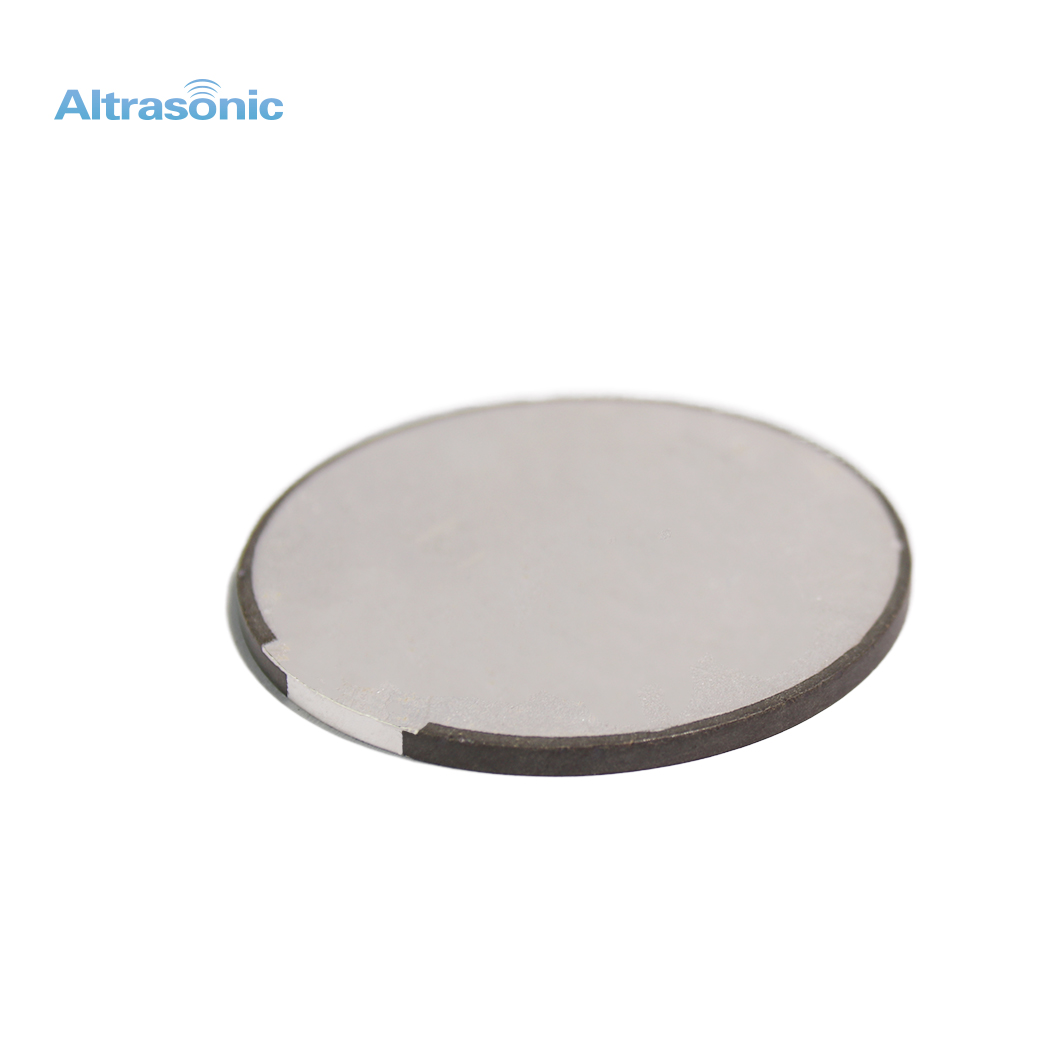

High Power Ultrasonic Piezo Ceramic Disk Material For Ultrasonic Cleaner

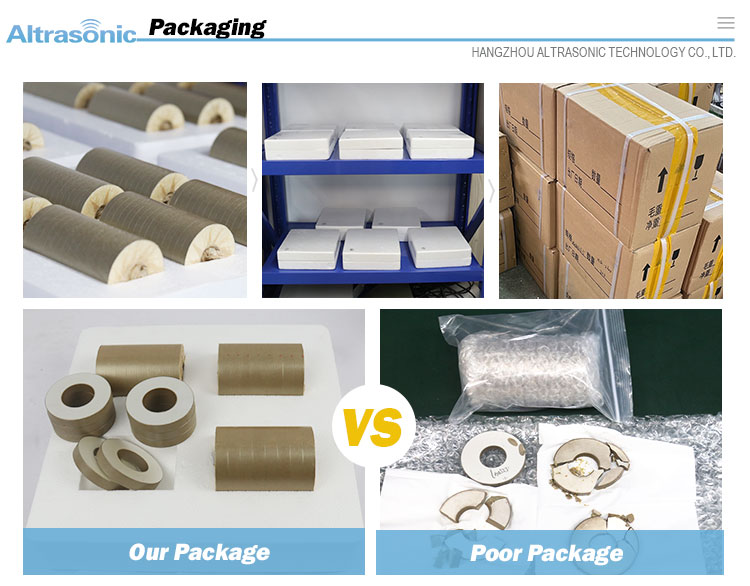

Package:


High Power Ultrasonic Piezo Ceramic Disk Material For Ultrasonic Cleaner

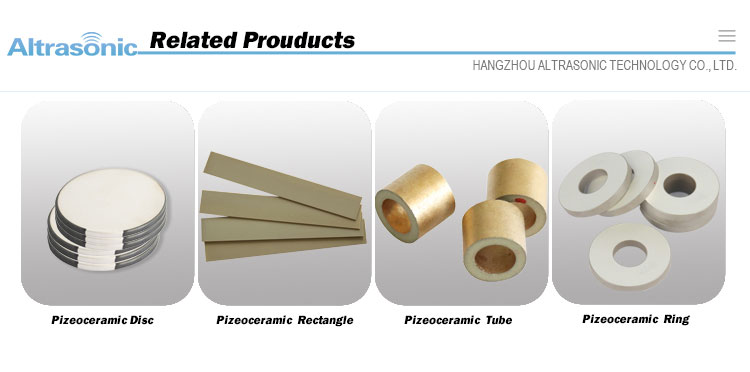

Related products:

High Power Ultrasonic Piezo Ceramic Disk Material For Ultrasonic Cleaner
